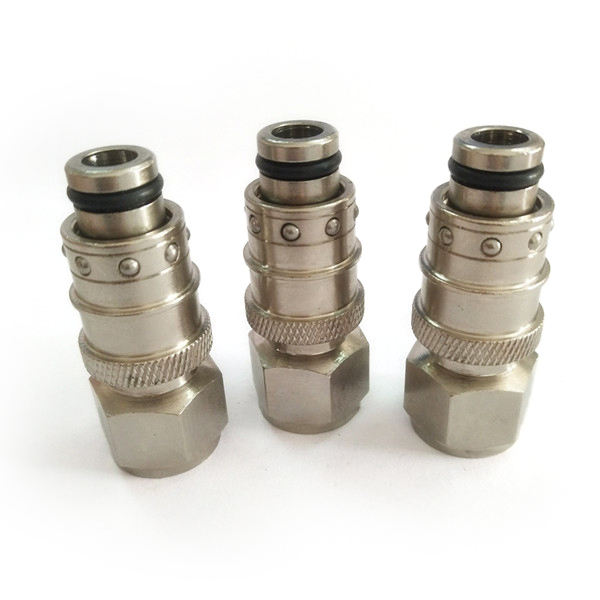

The straight through RPL series has the advantages of optimal flow and compact design.
The RPL connector has three different diameters to cover any flow required for mold temperature control.
The straight through design can avoid scaling and ensure smooth fluid.
The connection and disconnection are easy and convenient, the maintenance is simple, and the sealing ring can be replaced easily and quickly.

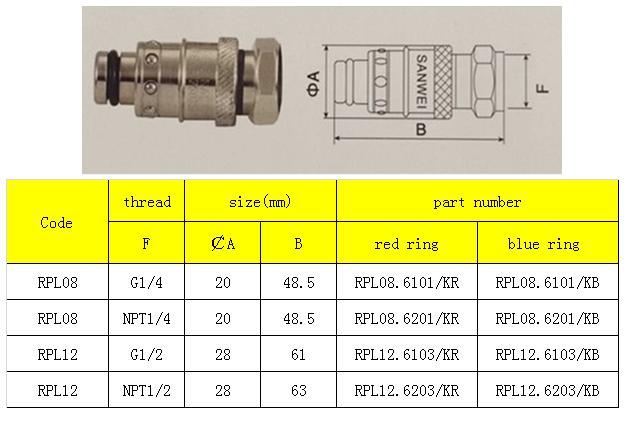

| Part No | RPL08,RPL12 |
| Material | Brass+plating |
| Seal | NBR |
| Shape | straight |
| Female thread | G1/4,NPT1/4, G1/2, NPT1/2 |
| Temperature Rage | -20℃ to max 90℃ |
| Working Pressure | 0-20bar |
| Mold | open flow |
The straight through RPL series has the advantages of optimal flow and compact design.
The RPL connector has three different diameters to cover any flow required for mold temperature control.
The straight through design can avoid scaling and ensure smooth fluid.
The connection and disconnection are easy and convenient, the maintenance is simple, and the sealing ring can be replaced easily and quickly.
| Part No | RPL08,RPL12 |
| Material | Brass+plating |
| Seal | NBR |
| Shape | straight |
| Female thread | G1/4,NPT1/4, G1/2, NPT1/2 |
| Temperature Rage | -20℃ to max 90℃ |
| Working Pressure | 0-20bar |
| Mold | open flow |
