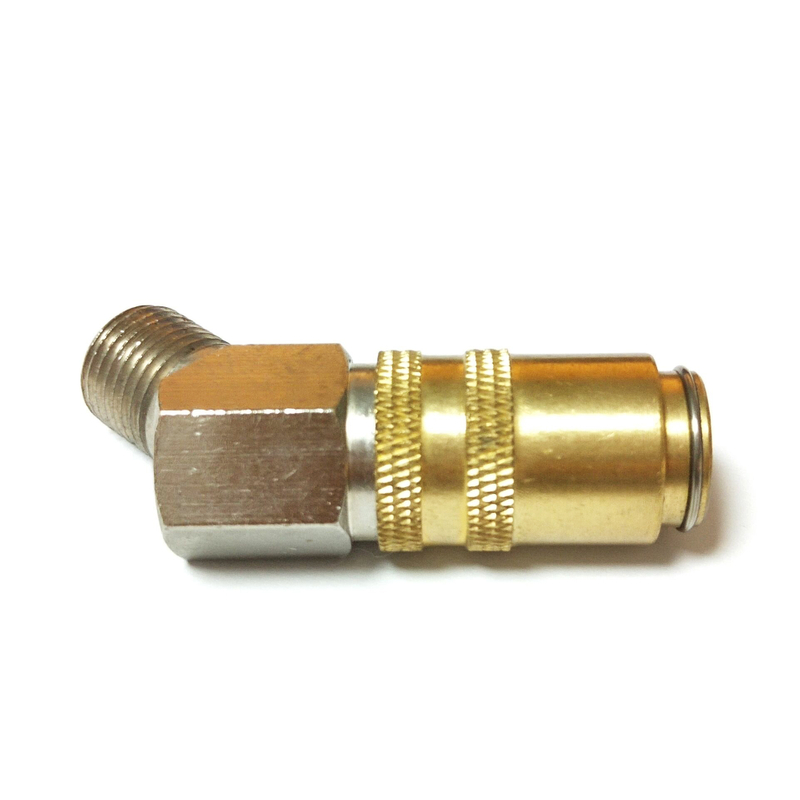

TZ807-45°Series Brass Quick Disconnect Coupler

1. HASCO quick couplings are designed for use with plastics molds and die cast, dies in water , air or oil lines.

2. they feature a combination brass and stainless steel leakproof construction; have a maximum rated capacity of        200 psi; and withstand temperatures up to 200℃, with supplied with viton seals.

3. quick couplings can be used interchangeably with the same nipple plugs already in your mold or die,                        comparable sizes of both type quick couplings have the same O.D., permitting interchangeability even

when the plugs are flush mounted.

4. HASCO quick couplings have a large thru hole to provide unrestricted flow.These quick-connection couplers are          available with either straight, 45° or 90° hose stems, or standard female or male NPT threads.

5. nipple plug and quick couplings have the same O.D., permitting complete interchangeability with nipple plugs        installed in your mold or die.
