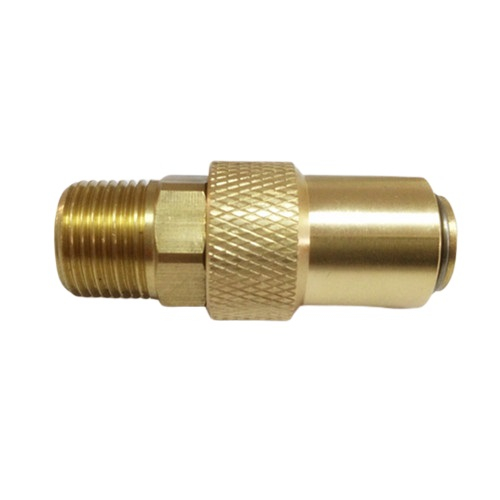

Japanese Standard Brass Male Thread Socket Coupling

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

1. misumi quick couplings are designed for use with plastics molds and die cast, dies in water , air or oil lines.


2. they feature a combination brass and stainless steel leakproof construction; have a maximum rated capacity of        200 psi; and withstand temperatures up to 200℃, with supplied with viton seals.


3. quick couplings can be used interchangeably with the same nipple plugs already in your mold or die,                        comparable sizes of both type quick couplings have the same O.D., permitting interchangeability even

when the plugs are flush mounted.


4. misumi quick couplings have a large thru hole to provide unrestricted flow.These quick-connection couplers are          available with either straight, 45° or 90° hose stems, or standard female or male NPT threads.


5. nipple plug and quick couplings have the same O.D., permitting complete interchangeability with nipple plugs        installed in your mold or die.


Part No TKSM2, TKSM3
Material Brass
Seal  viton
Shape straight
Temperature Rage -20℃ to max 120℃
Working Pressure 0-15bar
Mold with valve

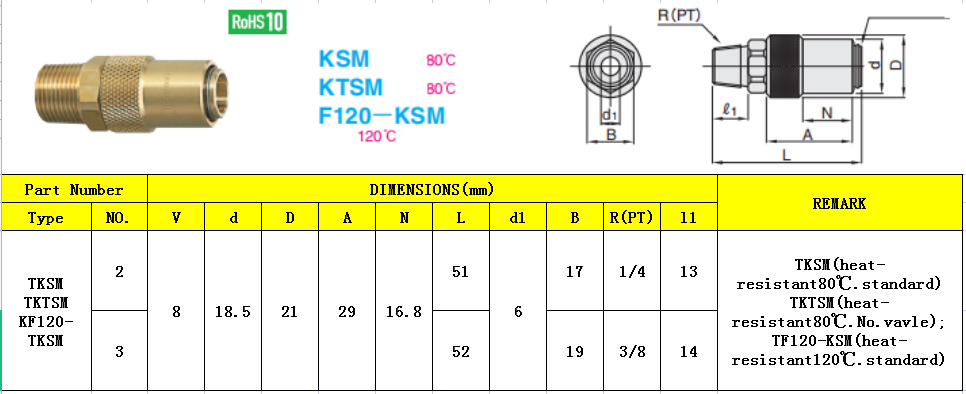

TKSM LIST
