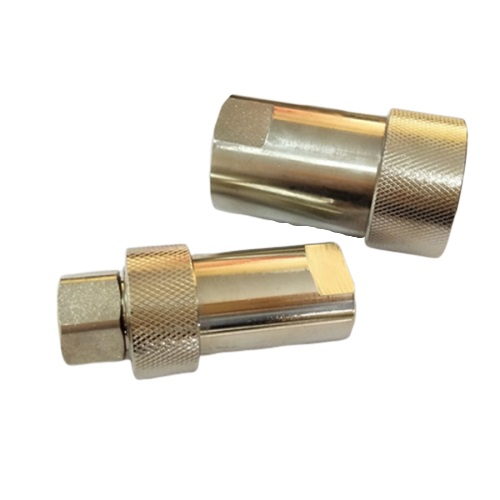

The straight through nitto series has the advantages of optimal flow and compact design.
The connector has three different diameters to cover any flow required for mold temperature control.
The straight through design can avoid scaling and ensure smooth fluid.
The connection and disconnection are easy and convenient, the maintenance is simple.

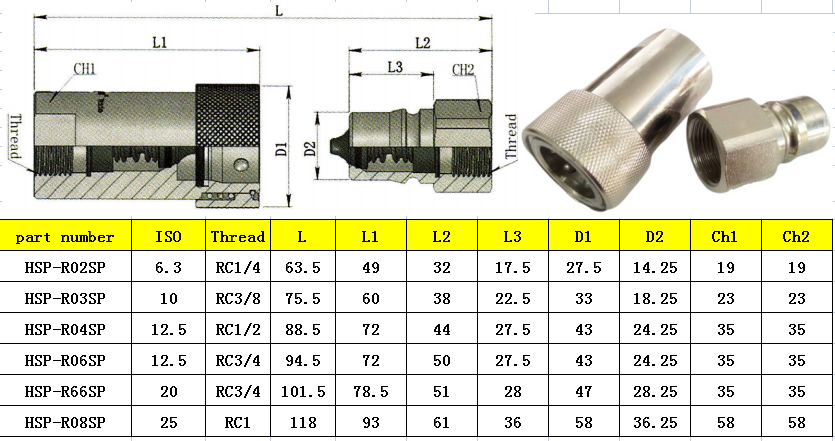

Part No | HSP-R02SP; HSP-R03SP; HSP-R04SP.... |
Material | Steel |
Seal | NBR |
Shape | straight |
Temperature Rage | -20℃ to max 80℃ |
Working Pressure | 0-15bar |
Mold | no vavle |
