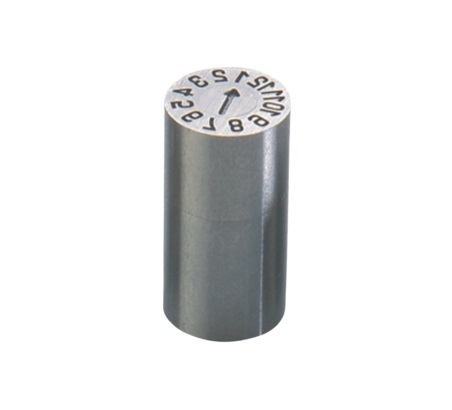

European Spanish Standard Replaceable Date Marked Pin

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. Rotate the inserted parts clockwise, and no convex phenomenon appears;

  2. The inserted parts can be changed from the front face, and when rotating it 2-4 circles anticlockwise, convex phenomenon appears, and it is easy to replace without removing the mould;

  3. Note: in the production process, don't rotate anticlockwise when adjusting the date stamp, and you should adjust it clockwise to avoid then inserted parts loose.


Part No FX.0632SF; FX.0847SF....
Material  SUS420
Hardness 48-54

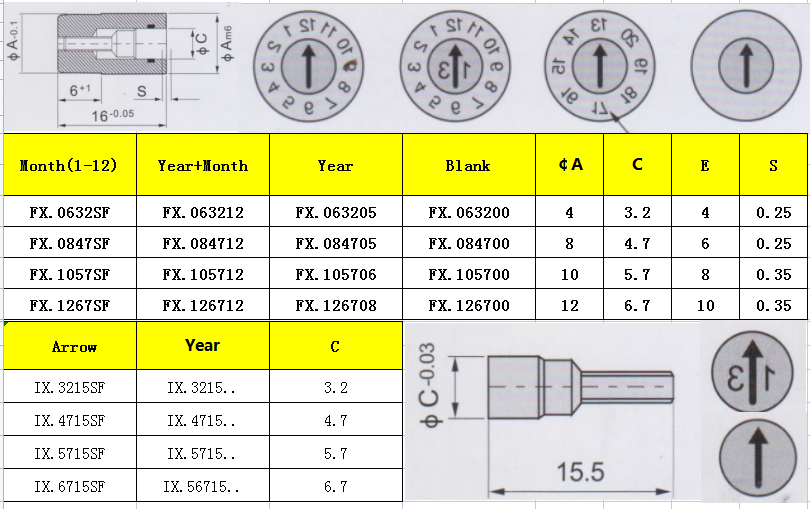

fx list

Inner Pointer of date stamp:

Inner pointer can be dismantled, and you can choose different types of inner pointer according to different years.
