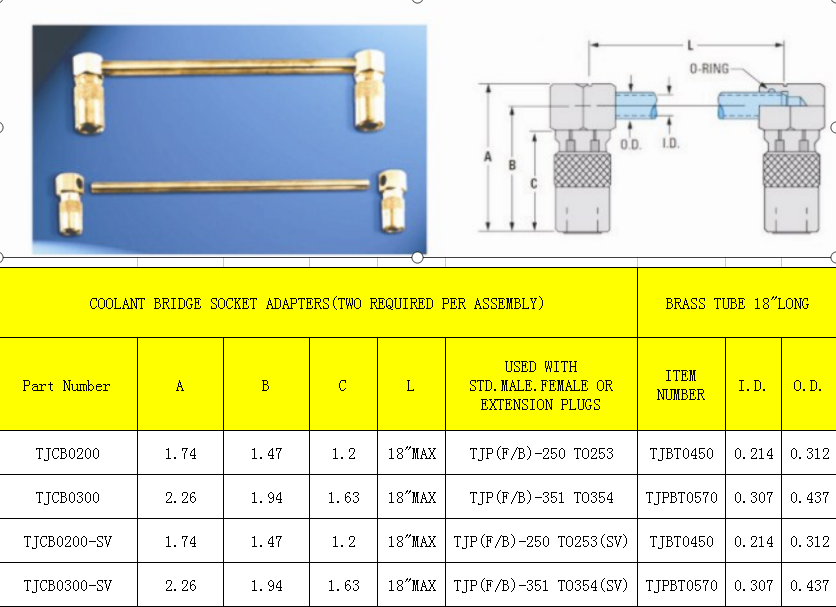

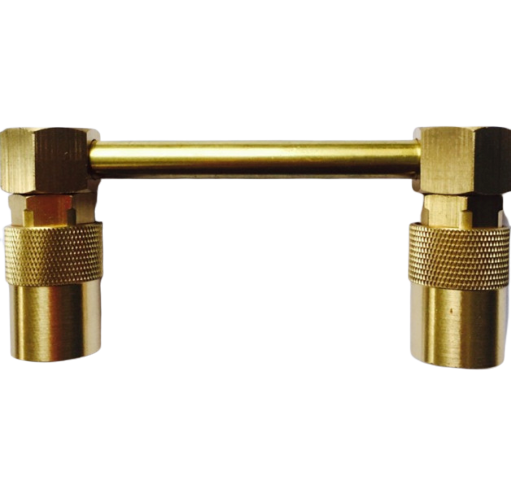

coolant bridge consists of two coupling adapters (including O-rings) and one chamfered brass tube.
tubes are 18" long. cut to suit for specific application using cut line grooves,then chamfer and deburr tube as indicated in installation data.
coolant bridge coupling adapters will provide one way shut off when used with standard male , female and extension plugs and two way shut off when used with sv seires male nipple plugs.
maximum temperature rating is 200℃, miximum PSI rating is 200
| Part No | TJCB0200;TJCB0300; TJCB0200-SV;TJCB0300-SV |
| Material | Brass |
| Seal | Viton |
| Shape | Bridge |
| Temperature Rage | -20℃ to mzx 160℃ |
| Working Pressure | 0-20bar |
| Mold | Open flow, wth valve |
