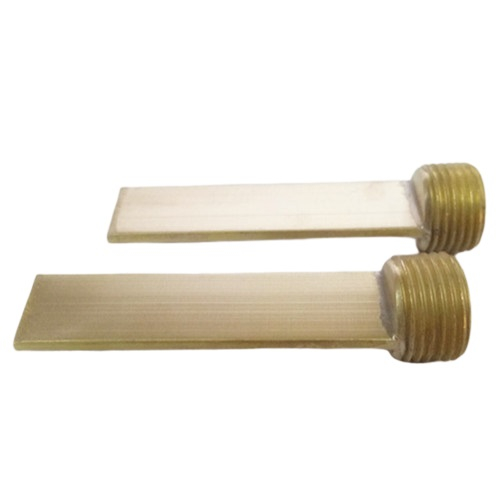

dme brass plug baffles available in both straight and spiral styles, are constructed entirely of high quality brass with blades brazed to the plugsfor long, dependable service. they provide a high pressure seal through a deliberate difference of taper between the plug and the tapped hole.
the function of the baffle is to split the drilled waterline into two equal channels. as the heating or cooling medium enters, the baffle diverts the flow to travel up to and over the end of the baffle and down other side.

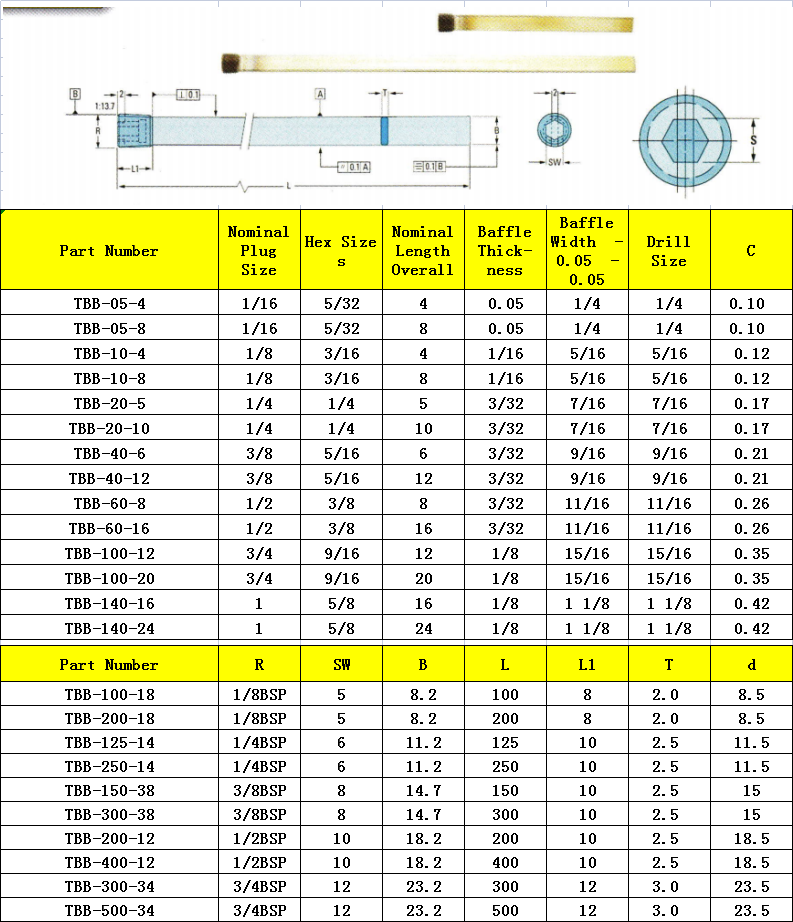

3.clearance must be provided between the end of the baffle and the end of the drilled channel to provide adequate flow. see Dimension "C" for approximate clearances.
| Part No | TBB-05-4; TBB-05-8... |
| Material | Brass |
| Shape | straight |
| Temperature Rage | -20℃ to max 160℃ |
| Working Pressure | 0-20bar |
| Mold | open flow |
dme brass plug baffles available in both straight and spiral styles, are constructed entirely of high quality brass with blades brazed to the plugsfor long, dependable service. they provide a high pressure seal through a deliberate difference of taper between the plug and the tapped hole.
the function of the baffle is to split the drilled waterline into two equal channels. as the heating or cooling medium enters, the baffle diverts the flow to travel up to and over the end of the baffle and down other side.
3.clearance must be provided between the end of the baffle and the end of the drilled channel to provide adequate flow. see Dimension "C" for approximate clearances.
| Part No | TBB-05-4; TBB-05-8... |
| Material | Brass |
| Shape | straight |
| Temperature Rage | -20℃ to max 160℃ |
| Working Pressure | 0-20bar |
| Mold | open flow |
